• Model NO.：SMH175
• Voltage：600V
• Application：Conduct Electricity
• Housing Color：Grey,Blue,Red
• Gender：Male and Female
• Warranty：1 Year
• Type：Dual Hole Terminals
• Interface Type：AC,DC
• Place of Origin：China
• Transport Package：Standard Export Carton
• Specification：Rectangular
• Trademark：SMH
• Origin：China
• HS Code：8536901900
• Production Capacity：2000,Months

Basic Info.

Model NO. SMH175 Voltage 600V Application Conduct Electricity Housing Color Grey/Blue/Red Gender Male and Female Warranty 1 Year Type Dual Hole Terminals Interface Type AC/DC Place of Origin China Transport Package Standard Export Carton Specification Rectangular Trademark SMH Origin China HS Code 8536901900 Production Capacity 2000/Months

Product Description

SMH 175A 600V Connector Plug 2 Pin Grey Battery Terminal Connector SMH175


Products Specifications:

• 4 AWG battery connector kit rated at 175A, 600 VDC
• Impact resistant polycarbonate housing offers high physical strength and superior dielectric properties
• Silver-plated solid copper contacts offer low resistance for superior conductivity
• Self cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion
• Contacts have flared and heat treated barrels which readily accept fine stranded wire
• Integral stainless steel springs maintain constant pressure on the contact to insure a consistent, low-resistance connection

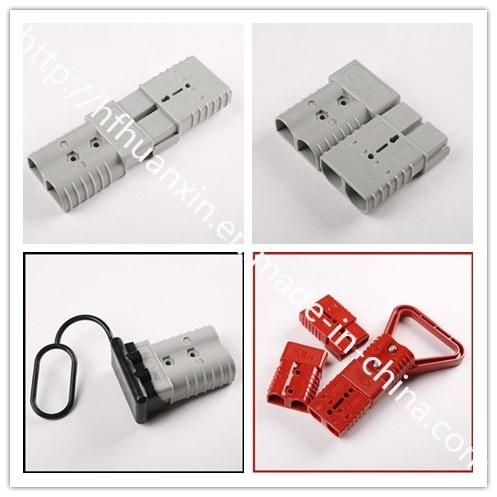

Products Picture:

KEY FEATURES:

• Brand: SMH
• Model: SY6325G6, each connector assemblage includes one housing and two tips (contacts)
• Part number: 263-120
• Housing Color: gray/blue/red
• Current rating (ampers): 175A on 6 AWG wire produces 30° C rise
• Voltage limit (volts): 600
• Insulation with standing test voltage (volts): 2200V DC
• Operating temperature range: -20° to 105° C
• Maximum wire insulation diameter: 19 mm (0.75")
• Average contact retention force: approximately 300 lbs (136 kg)
• Average contact resistance: 100 µΩ with 1-3/4" (45 mm) of 1/0 AWG wire
• Vibration resistance: excellent
• Mating cycles: 10,000 times, for disconnect use only
• Environmental restrictions: protected - no hydrocarbon fluids
• Flammability rating: UL94 V-0
• Average mating and unmating force: 25 lbs (11.25 kg)

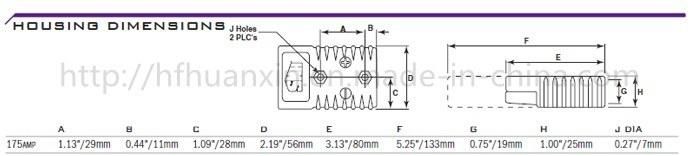

Dimensions:

Our Services:

Welcome Sample Order                             After-Sales Service                                           Reply you inquiry in within 24 hours

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A: Samples arrived often need 3-5 days.


Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.


Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.


Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.


Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.


Package & Shipping:

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers' destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Our Certification

Company information

Hefei Huanxin Technology Develop  Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
