• Model NO.：Forklift brake parts
• Manufacturer：From Genuine Forklift Parts Producers
• Feature：OEM Genuine Forklift Parts
• Advantage：High Quality Forklift Parts
• Strength：Competitive Price From No.1 China Forklift Parts S
• Tcm P/N：24433-70421z
• Heli P/N：24433-71000
• Tailift P/N：42506006
• Transport Package：Export Standard
• Specification：various forklift parts mast roller bearing
• Trademark：Leading forklift parts
• Origin：Made in China
• Production Capacity：50000 Per Year

Basic Info.

Model NO. Forklift brake parts Manufacturer From Genuine Forklift Parts Producers Feature OEM Genuine Forklift Parts Advantage High Quality Forklift Parts Strength Competitive Price From No.1 China Forklift Parts S Tcm P/N 24433-70421z Heli P/N 24433-71000 Tailift P/N 42506006 Transport Package Export Standard Specification various forklift parts mast roller bearing Trademark Leading forklift parts Origin Made in China Production Capacity 50000 Per Year

Product Description

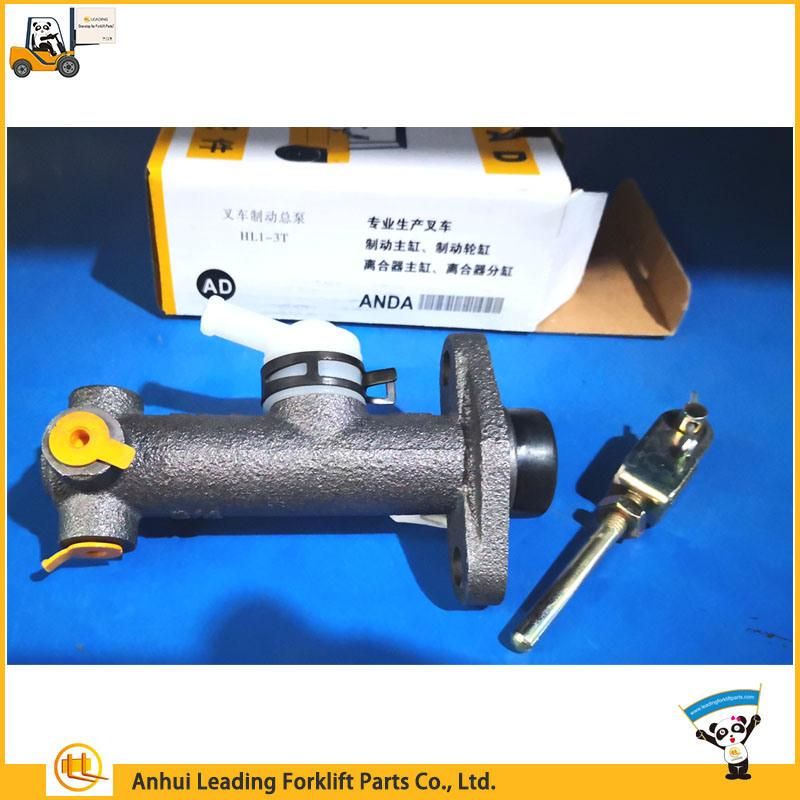

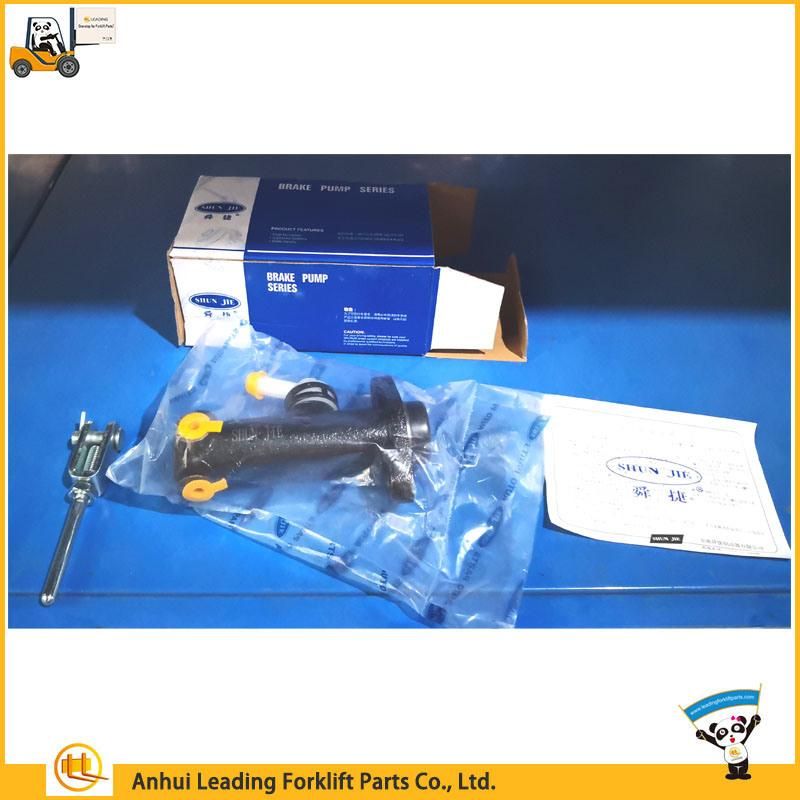

 Product Title: Forklift brake parts brake pad master cylinder wheel cylinder hand parking brake inching brake
Product Model: Forklift brake assemblyZD-24433-70421Z-HN


Item	Description
Product Name	TCM Forklift brake assembly
P/N	ZD-24433-70421Z-HN
Applied Model	TCM forklift parts # 30T3C (genuine parts) (For TCM forklift # 3T)
Net Weight (kg)	12.00
Gross Weight (kg)	13.00
Qty per Carton	1
Carton Size (cm)	36*36*13

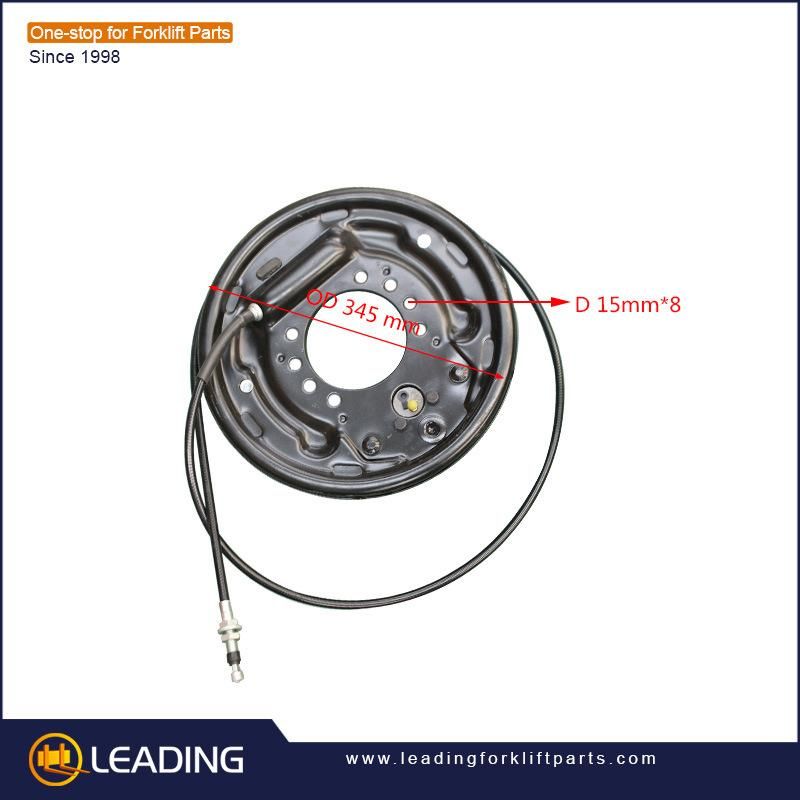

Forklift Brake Assembly Structure

Forklift brake assembly, including brake discs, a pair of brake shoe mounted on the front of the brake disc. Forklift brake shoe assembly including inner hoof ribs and friction linings with on the inner hoof ribs, lower end of both brake shoes installed on both sides of the brake shaft.

A return spring is installed between the lower ends of the two brake shoes. Shoes support column are mounted on the front of the brake disc. And shoes return spring is also installed between the upper parts of the two brake shoes. Forklift brake disc assembly, including brake shoes, brake cylinder, brake cable, spring, strut, etc., is divided into disc brake and drum brake.

Forklift brake system is installed on the front axle of the forklift truck. If brakes parts and components is not in perfect condition, brake might be failed which result in serious safety hazard. leadingforklift.en.made-in-china.com provides forklift genuine parts, we strongly recommend that one you choose safety parts such as forklift brake parts, you should trustfully suppliers.  leadingforklift.en.made-in-china.com has full range forklift parts for Heli  TCM JAC Tailift Lonking Liugong Goodsense, please contact us for more options when you purchase forklift parts.

All Catalogue	Typical forklift parts
1. Forklift maintenance parts	Air filer, air cleaner, oil filter, fuel filter, filter cartridge, transmission oil filter, hydraulic oil filter, engine oil, hydraulic oil, antifreeze, repair kit, paint repair, decal.
2. Forklift brake parts	Forklift brake master cylinder, vacuum booster, brake shoes, brake cable, brake spring, hose, handbrake, parking brake.
3. Forklift steering axle	Steering axle housing, steering axle assy, steering wheel, steering wheel knob, steering hub, steering knuckle, knuckle kingpin, knuckle repair kit, steering column, forklift universal joint.
4. Forklift driving axle	Forklift driving axle assy, driving axle housing, driver shaft, driving wheel hub brake drum, main reducer, wheel reducer, differential.
5. Forklift electric parts	Forklift switch, start switch, forklift instrument panel, buzzer, horn, light, flasher, wiring harness, electronic regulator, fuel sensor, start battery, timer, fuse, relay, wipe, meter.
6. Forklift electronic control	Forklift controller, battery pack, contactor, charge connector, battery charger, solenoid, electrical accelerator, DC converter, forklift steering motor, forklift driving motor, forklift lift motor.
7. Forklift diesel engine	Forklift engine assembly, cylinder head, cylinder head cover, gasket, valve, rocker, camshaft, injection pump, timing gear chamber, crankshaft, breather, oil pan, oil pump, flywheel, starter motor, generator, fuel pump.
8. Forklift Engine cooling system	Radiator, water tank cover, water pump, fan blade, thermostat, water hose
9. Forklift hydraulic transmission	Hydraulic transmission assy, hydraulic transmission housing, torque converter, charging pump, hydraulic clutch assy, clutch plate, control valve, inching valve.
10. Forklift mechanic transmission	Forklift gearbox assy, synchronizer, clutch pressure plate, release fork, clutch housing, spiral bevel, clutch shift lever, clutch bearing.
11. Forklift hydraulic components	Forklift gear pump, directional valve, relief valve, stop valve, lift cylinder, tilt cylinder, side shift cylinder, power steering cylinder, orbitrol steeing unit, seal, connecter.
12. Forklift tire wheel rim	Forklift wheel, solid tire, pneumatic tire, rim
13. Forklift mast and bearing	Fork, fork sleeve, fork pin, fork carriage, back rest, side shifter, mast roller, mast chain, mast, forklift bearing.
14. Forklift body parts	Overhead guard, manifold exhaust pipe, muffler, exhaust pipe, seat, seat belt, hinge, back mirror, floor mat, handle ball, hood, cab, attachment
15.Unclassified forklift parts	Forklift bearing, gas spring, inlet pipe, sheave, accelerator pedal, bracket cable, accelerator linkage, hood latch
16. Electric pallet truck	Heli electric pallet truck, caster, joystick.

 About Us

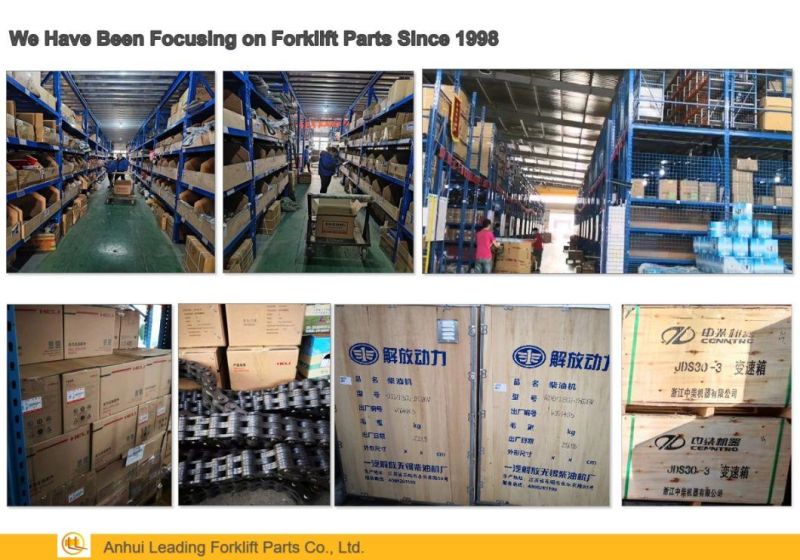

Anhui Leading Forklift Parts Co., Ltd. is owned by SA Group which is the biggest forklift parts supplier in China in the last three years. We have 31 branch companies in China and a large center warehouse in Hefei City. Usually we have 85000 items in stock.

Our headquarter is in Hefei city Anhui province which is the most famous forklift trucks and parts production base in China. Nearly ten forklift truck manufacturers in Hefei city including Heli, JAC, TCM, TEU, HECHA, Vmax, MIMA, Cherry forklifts. And with more than 300 forklift parts manufacturers here, we are basically producing all necessary parts and components of internal combustion forklifts and electric forklifts.

We have been focusing on forklift parts since 1998. The strength of our company is that we are supplying full range of parts for Heli forklifts, a wide variety parts for JAC, Lonking forklifts, full range of parts for China engine assy and parts, such as Xinchai,Quanchai, FAW, YTO engine assy and parts, transmission assy and parts, driving steering axle assy and parts, forklift brake parts, forklift hydraulic parts, forklift bearing which are widely used for China brand forklifts.

If your demand is our advantage products, we will give you more options and a better price!
