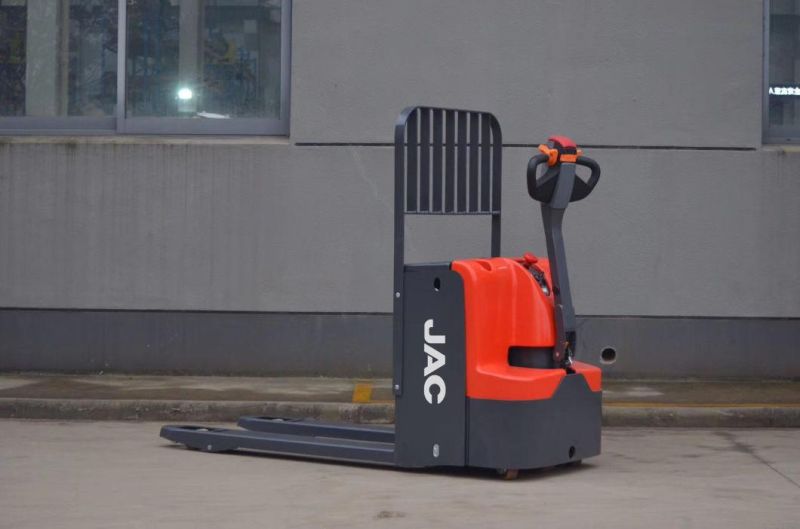

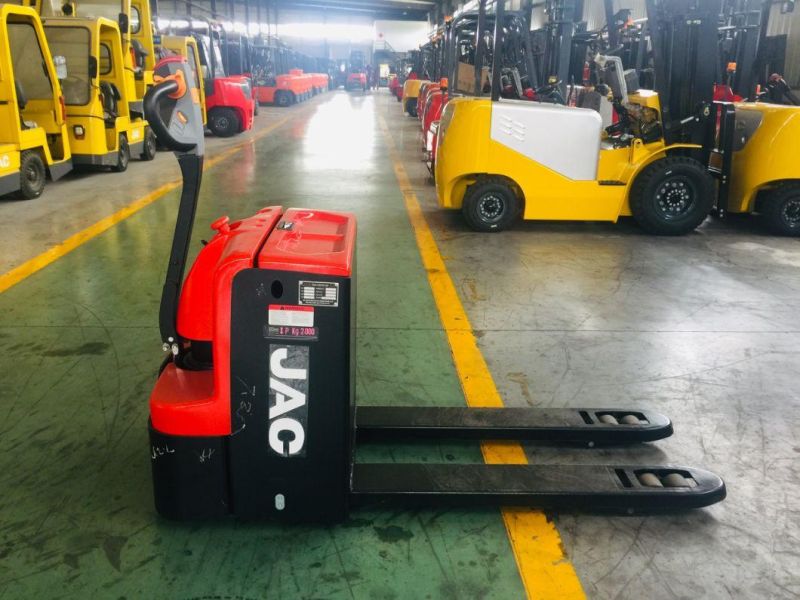

• Model NO.：CBD20
• Lift height：200mm
• Condition：New
• Controller：Curtis
• Transport Package：Container Package
• Specification：2000kg load capacity
• Trademark：JAC
• Origin：China
• HS Code：84271090
• Production Capacity：10000 Pieces,Year

Characteristics1.1                                                                         Manufacturer              UnitJAC1.2                                                                                         Model CBD201.3 Power unit                       electric1.4 Operation                             pedestrian1.5 Rated traction weightkg20001.6Load centremm6001.7                                                                                        Axle centre to fork facemm9201.8Wheel basemm1348Weights2.1Service weight(with battery)kg520,Wheels/Tyres3.1Wheels type PU3.2 Driving wheel sizeΦ×w(mm)Φ230×703.3 Bearing wheel sizeΦ×w(mm)Φ80×703.4additional wheels(dimensions)Φ×w(mm)Φ100×403.5Wheels, number front/rear (x = driven)   1x+2/43.6Track widthmm390/525                  Dimensions4.1Lifting heightmm2004.2The height of handle in the operation position min/maxmm825/12784.3 Minimum height of the forkmm854.4                                                                                 Overall lengthmm17424.5 Length to fork facemm5924.6                                                                                  Overall widthmm7004.7Fork dimensionss/e/l (mm)50/160/11504.8                                                                                 Width of forksmm550/6854.9Min.Ground clearancemm354.10 Aisle width with pallet 1000 x 1200 across forksmm19624.11Aisle width with pallet 800 x 1200 along forksmm20124.12Min.Turning radiusmm1517              Performance5.1Travel speed,laden/unladenkm/h4.2/4.55.2Lifting speed, with/without loadmm/s21/275.3Lowering speed, with/without loadmm/s38/385.4 Maximum climbing ability, with/without load%8/155.5Service brake                  electromagnetic braking                    Drive6.1 Drive motor, 60 minute ratingkW1.36.2 Lift motor rating at S3 15%kW0.86.3Battery according to DIN 43531/35/36 A,B,C,no no6.4Battery voltage/rated capacityV/Ah24/2106.5Battery weight (± 5%)kg195                   Others7.1Type of drive control                                  DC power7.2Noise level at operator's eardB(A)687.3 Steering type                              Mechanical steeringThe company reserves the right to change the parameters without notice.
