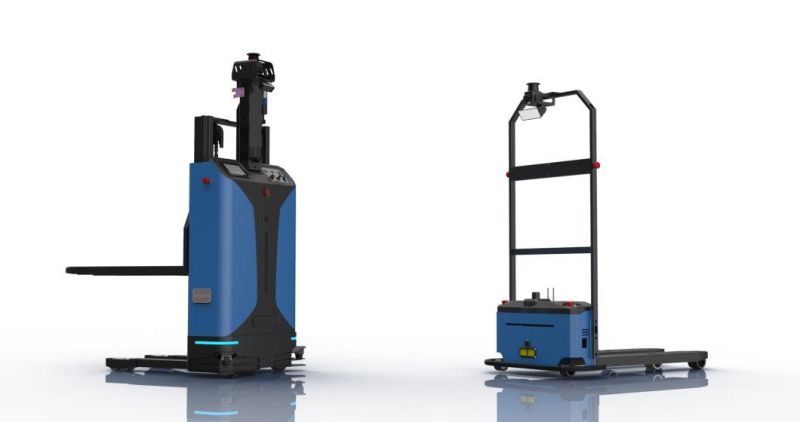

• Model NO.：WMF500
• Condition：New
• Mass：210kg
• Fork Size(L*W*H)：1154*186*60mm
• Navigation：Lidar Slam
• Driving Form：Differential,Wheel
• Minimum Turning Radius：1035mm
• Fork Lifting Height：174mm
• Battery Endurance：≥8h
• Charging Time：0 - 80%: 2h
• Charging Mode：Manual,Automatic(with Automatic Charging Pile)
• Specification：1585*885*1836mm
• Trademark：Wellwit
• Origin：Shenzhen

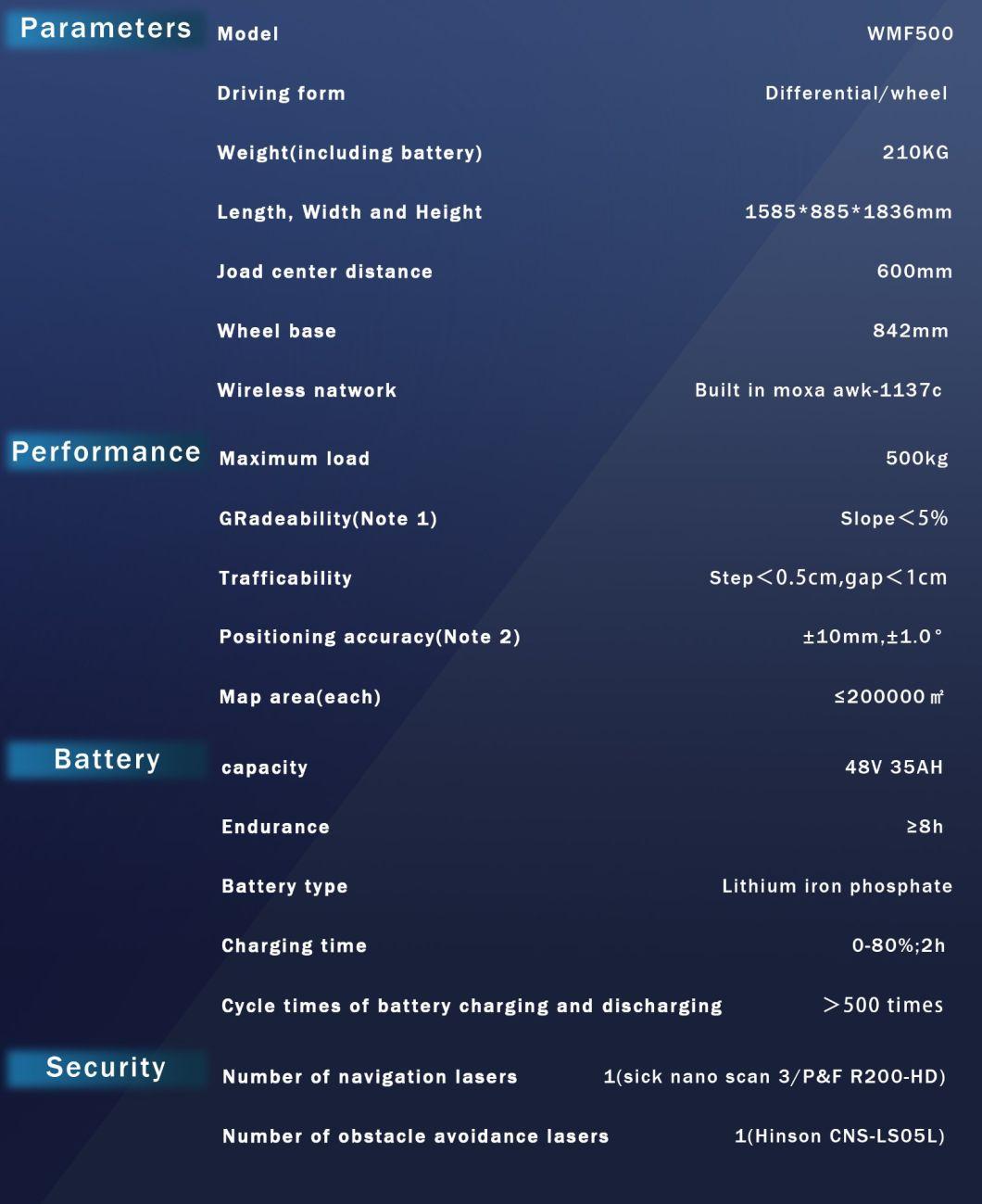

Basic Info.

Model NO. WMF500 Condition New Mass 210kg Fork Size(L*W*H) 1154*186*60mm Navigation Lidar Slam Driving Form Differential/Wheel Minimum Turning Radius 1035mm Fork Lifting Height 174mm Battery Endurance ≥8h Charging Time 0 - 80%: 2h Charging Mode Manual/Automatic(with Automatic Charging Pile) Specification 1585*885*1836mm Trademark Wellwit Origin Shenzhen

Product Description

Notes:1. The road surface shall be flat, clean and free from obvious undulation. Slope 5% = arctan (0.05) ≈ 2.8 °.The robot shall not stop or turn at the ramp, step or gap, and can only pass through the ramp, step or gap perpendicular to the ramp, step or gap quickly.
2. The positioning accuracy is affected by environment, ground, etc. Please refer to the interpretation of positioning accuracy in the final technical agreement.

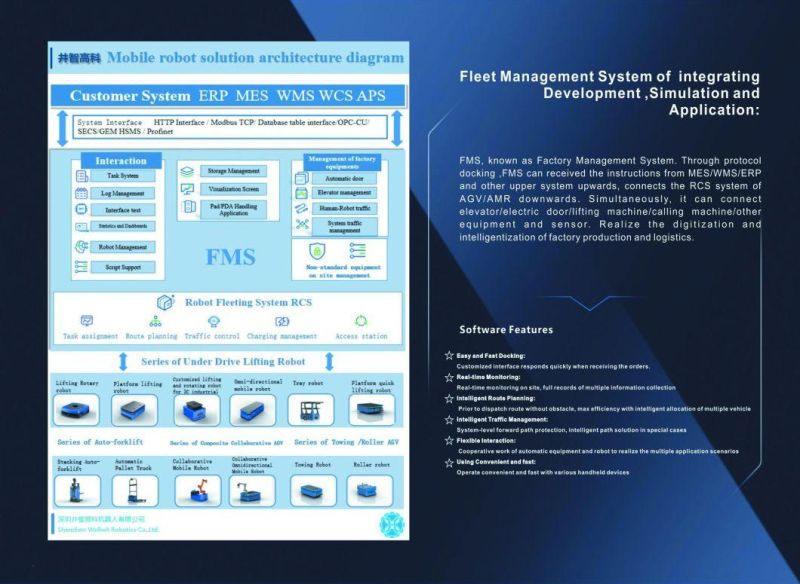

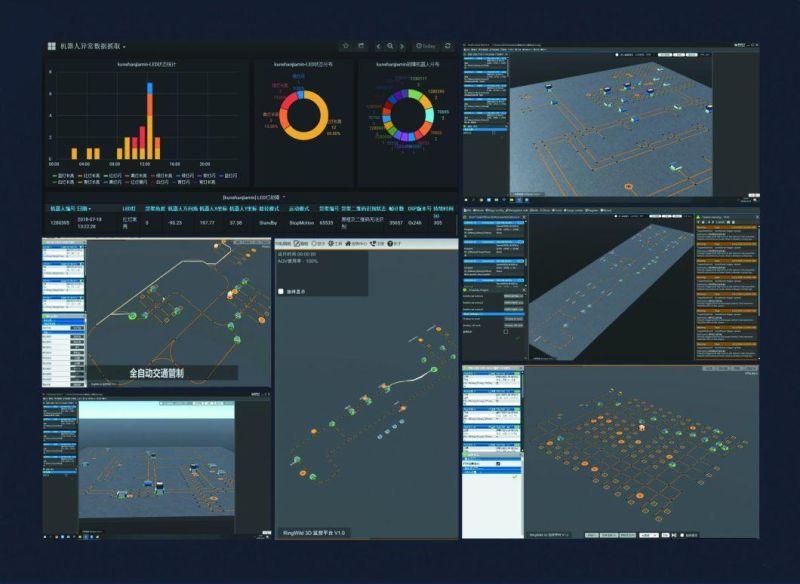

3. Basic functions include but are not limited to map editing, model editing, positioning module, navigation module and API interface 4. It needs to be used with a special automatic charging pile.
5. Special camera is required to realize this function.
6. 3D camera is required to realize this function.
7. WMF500 is only designed for indoor transportation, not recommended for outdoor environment.

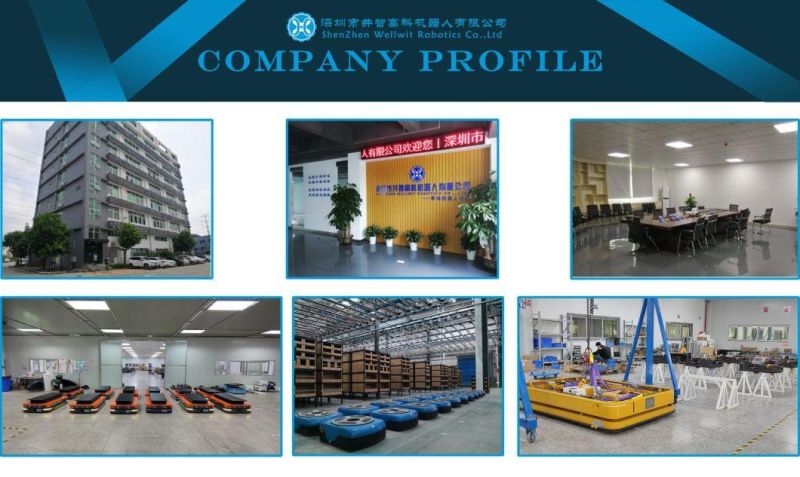

Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.

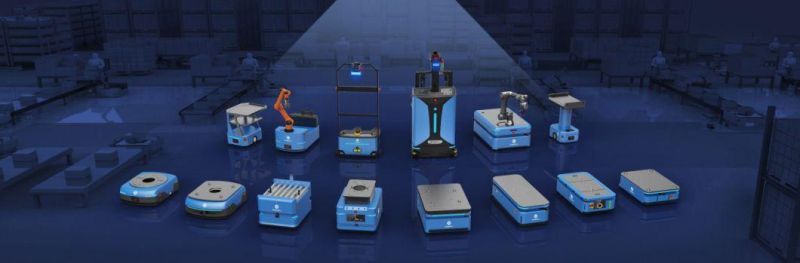

Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
