• Model NO.：QDA15
• Lift height：3000~5000mm
• Condition：New
• Overall Dimensions：2020*790*2050mm

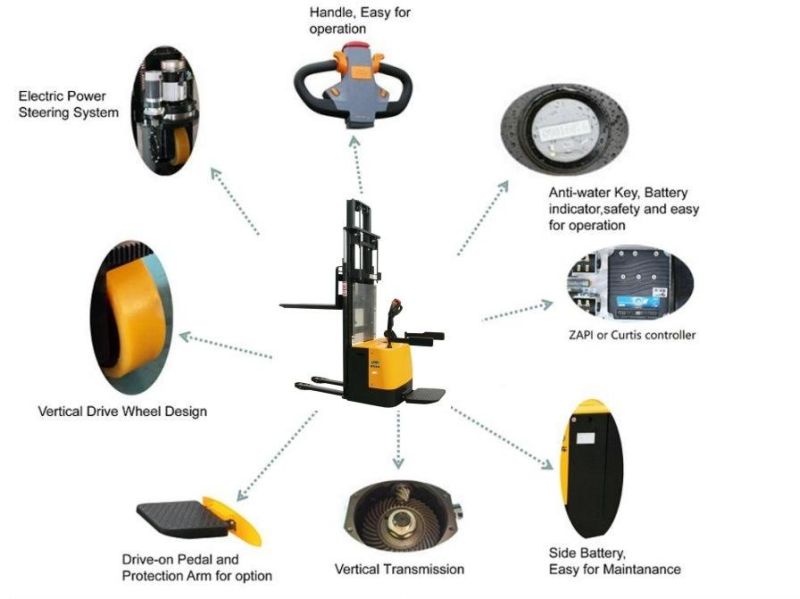

• Steering：Electric Power Steering
• Fork Width：570mm
• Rated Loading Capacity：1500kg
• Power Source：AC Electric Power
• Turning Radius：1390mm
• Power Souce：AC Motor
• Manufacturer：Ningbo Cholift Forklift Co., Ltd.
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Min. Lifting Height：2015mm
• Max. Lifting Height：6050mm
• Electric Stacker Controller：Curtis AC Controller
• Stacker Color：According to The Customer
• Certification：ISO, CE, CQC, IAF, TUV
• Fork Length：1070mm
• Transport Package：Exporting Standard Package 20gp 8 Units
• Specification：1500KG,2000KG
• Trademark：CHOLIFT
• Origin：Ningbo, China
• HS Code：84271090
• Production Capacity：1000 Unit,Units Per Month Electric Pallet Truck

Basic Info.

Model NO. QDA15 Lift height 3000~5000mm Condition New Overall Dimensions 2020*790*2050mm Steering Electric Power Steering Fork Width 570mm Rated Loading Capacity 1500kg Power Source AC Electric Power Turning Radius 1390mm Power Souce AC Motor Manufacturer Ningbo Cholift Forklift Co., Ltd. After-Sales Service Provided Engineers Available to Service Machinery Overseas Min. Lifting Height 2015mm Max. Lifting Height 6050mm Electric Stacker Controller Curtis AC Controller Stacker Color According to The Customer Certification ISO, CE, CQC, IAF, TUV Fork Length 1070mm Transport Package Exporting Standard Package 20gp 8 Units Specification 1500KG/2000KG Trademark CHOLIFT Origin Ningbo, China HS Code 84271090 Production Capacity 1000 Unit/Units Per Month Electric Pallet Truck

Product Description

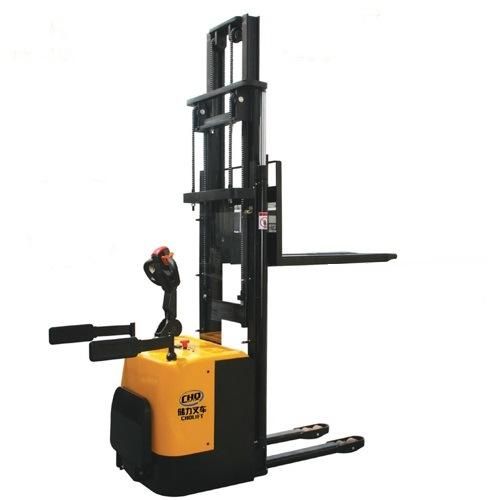

1.5T Electric Pallet Stacker







Model		QDA
Drive type		battery
Operation type		Ride on
Rated capacity	Q(kg)	1500/2000
Load center	c(mm)	500
Wheels material		Polyurethane
Max. lift height	h3	2.5/3.0/4.5/5.0/5.5m
Lowered mast height	h1(mm)	2015/2515/2000/2170/2340
Extended mast height	h4(mm)	3550/4550/5050/5500/6050
Lowered fork height	h13(mm)	85
Overall length	l1(mm)	2010/2020
Overall width	b1(mm)	790
Fork size	S/e/l(mm)	60/170/1150
Fork width	b5(mm)	570/685
Ground clearance	m2(mm)	25
Turning radius	Wa(mm)	1600
Max. gradient,laden/unload	%	3/10
Brake		Electromagnetic brake

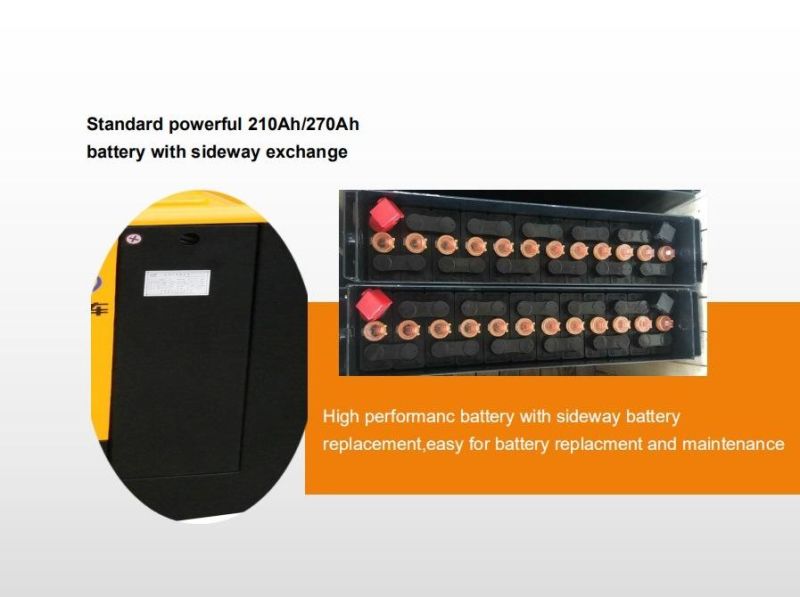

Battery voltage/rated capacity	V/Ah	24/210,24V/270
Noise level at operator's ear, according to DIN12053	dB(A)	<70

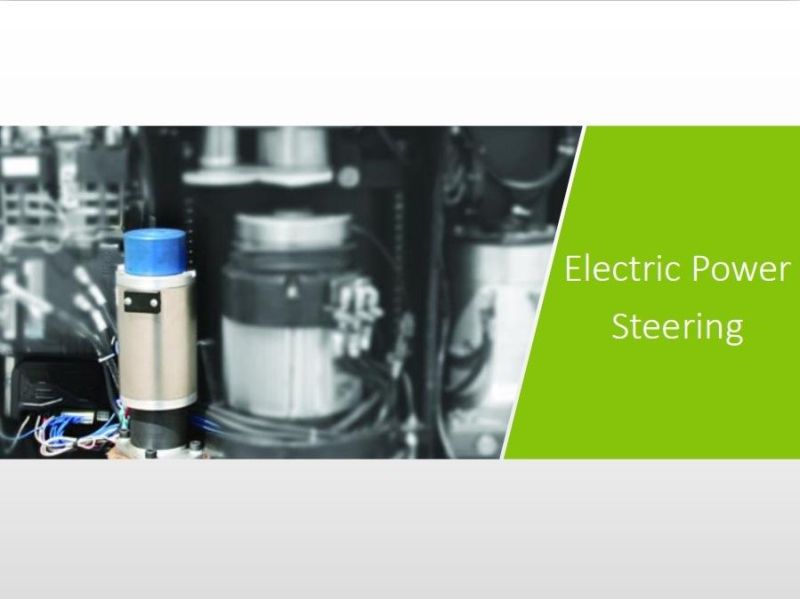

Steering		Power steering(EPS)



1. "H" mast design make stronger capacity to load

2. Circuit is tight and smart for easy maitenance and good performance

3. Double cylinder on the sides of mast ensures good view of operator.



About us



Good Performance

1) AC drive system gives precise control, longer battery life;



2) Aluminum cover, good heat dissipation for longer service life.

3) The latest AC controller, reliable quality, excellent performance, with regenerative braking.

4) Top-class hydraulic, low noise, low vibration, good sealing to ensure smooth and reliable decline.

5) Precision electronic limit switches.

6) Truck circuit lines in nylon casing, wiring clean and corrosio,oil &abrasion resistant.



Easy Maitenance

7) AC drive motor, no carbon brushes, reducing maintenance costs. Vertical drive motor make the inspection and repair more convenient, which performance much better than the transverse motor.

8) The design of integrated micro-switches, easy for replacement .

9) Cover easy to open, convenient to add distilled water or electrolyte of the battery.

10) Controller self-diagnosis system makes troubleshoothing easier.

Safe & Reliable

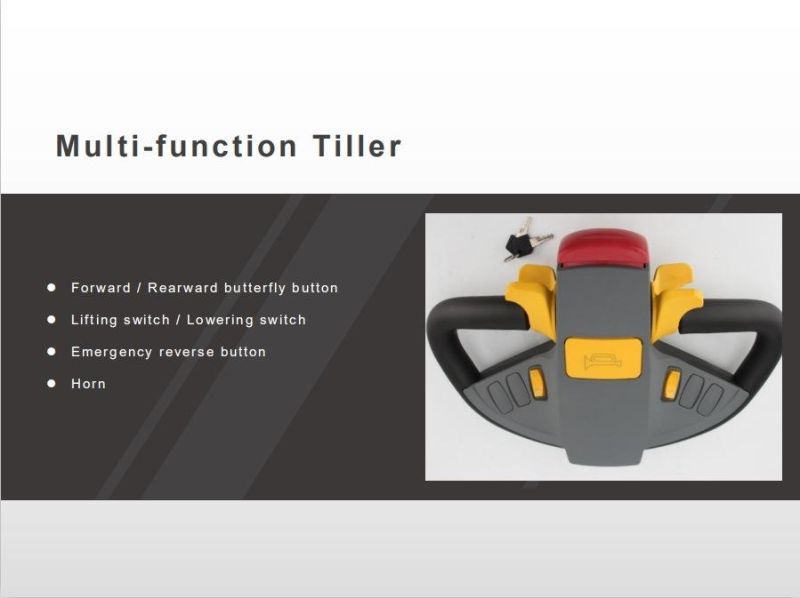

11) Emergency reverse switch

12) Emergency power-off disconnect

13) Foldable pedal, skid-proof, shock absorption, reducing the operator's fatigue;
