• Model NO.：FD70
• Lift height：3000mm-6000mm
• Condition：New
• Engine：China,Japan for Choice
• Mast：Duplex,Full Free Lift Mast
• Options：LED Light, Lux Seat, Fan, Solid Tire Ect
• Transmission：Automatic Transmission
• Attachements：Side Shifter, Clamps, Positioner Ect
• Color：Customer Customzied
• Transport Package：Container Shipment
• Specification：9340kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84272090
• Production Capacity：15000pieces,Years

NO.SpecificationsunitFD701CharacteristicsPower diesel2Rated Capacitykg70003Center of loadmm6004Lifting heightmm30005Free lifting heightmm2186Forks L×W×Hmm1220×150×707Tilt Forward/Backward.6/128Min.turning radiusmm33709Min.ground clearance(Mast)mm20010Overhead guard heightmm246011Height from seat to overhead guardmm105012Front overhangmm62513PerfMax.traveling speed(loaded)km/h2614Max.lifting speed(loaded/empty)mm/s370/45015Drawbar pull/GradeabilitykN/%51.4/2016DimensionsOverall length (without fork)mm346617Overall widthmm223518Mast lowered height mm250019Mast extended heightmm441720ChassisTireFront 8.25-15-14PR21Rear 8.25-15-14PR22Wheelbasemm225023Tread widthFront/Rearmm1470/170024Curb weightNone-loadkg934025PowertrainBatteryVoltage/CapacityV/Ah(12/90)x226EngineModel CY6102BG627Rated powerkw/r.p.m81/250028Rated torqueNm/r.p.m353/170029Cylinder amount 630Bore×Stroke mm102×11831Displacement 5.78532Fuel tankL14033Transmission 1/1 automatic transmission34Working pressureMPa20
 SNSC VIP Customize&Design for Your Work Condition, OptionalEngine (made in Japan)Iszu 6BG1/Mitsubishi S6SMast 3m to 7m lifting, 2-stage&3-stages3-stages full free mast for indide container Solid Tires prolong service life Double Front Tiresincrease stability, design for higher lifting height Fork Lengthcustomize according to pallet size in localFork Sleeves help one forklift service different pallets,high-efficiencyBackrest Dimensioncustomize for Empty Lifting ContainerSide Shifter Function to adjust fork more convernient to aim at pallet fasterCabin for special climate country/areaA/C(cool)&Heater(hot) for your choiceColor&Logo absolutely meet your requirementsDouble Filter design for dusty work condition

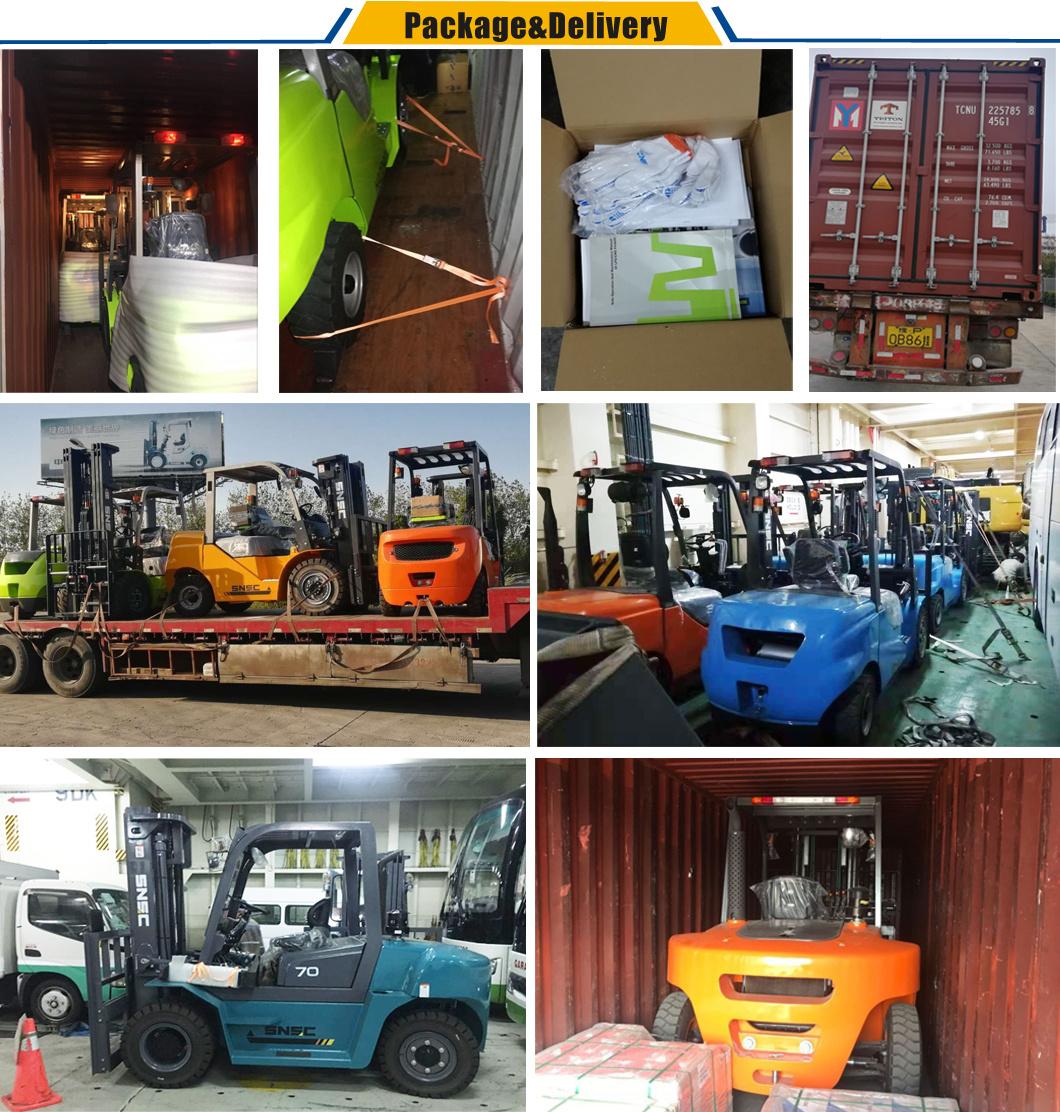

Packaging&Shipping 1*20'GP - 2 Units,     1*40'GP - 4 Units

Covered Forklift In Container Shipping with Tool Box, Catalogue, Gloves and Operation and Maintenance Manuals and Spare Parts together.


Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.

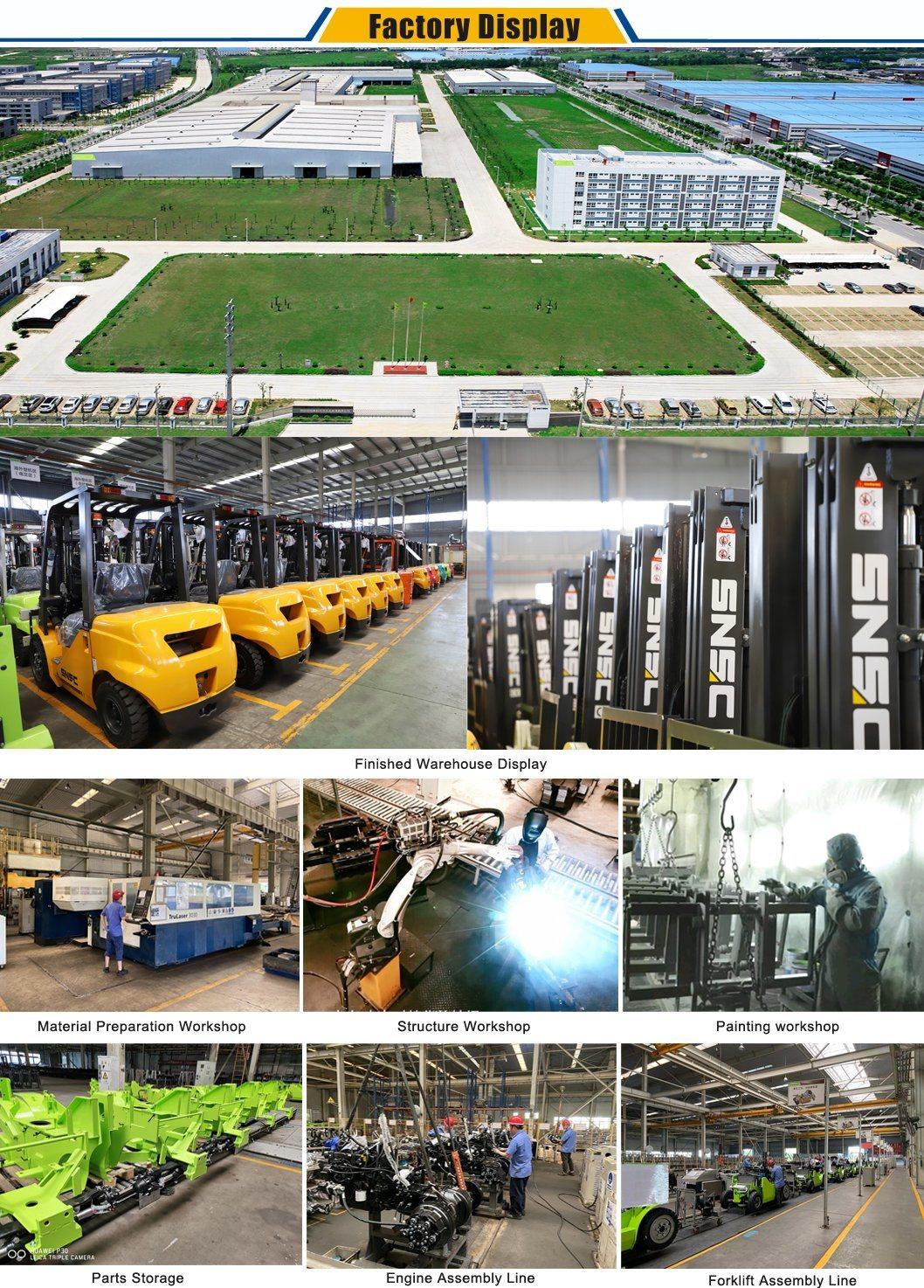

We are first calss in Chinese forklift  manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume

Our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.

Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions


 I. Diesel forklift range from 1.5 to 32tons;
II. Battery forklift range from 1.5 to 12tons;
III.LPG and gasoline forklift range from 1.5 to 7 ton;
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.
