• Model NO.：MJ20
• Load center：>500mm
• Lift height：6320 mm
• Condition：New
• Fork Size：1070 mm
• Transport Package：Wooden Pallet ,Steel Pallet
• Specification：10 CBM
• Trademark：RUMLIFT
• Origin：China
• HS Code：84271090
• Production Capacity：5000 Unit , Year

Basic Info.

Model NO. MJ20 Load center >500mm Lift height 6320 mm Condition New Fork Size 1070 mm Transport Package Wooden Pallet /Steel Pallet Specification 10 CBM Trademark RUMLIFT Origin China HS Code 84271090 Production Capacity 5000 Unit / Year

Product Description

RUMLIFT VNA articulated truck lifts to heights up to 12.5m with max. load capacity reach to 3ton. The ultra-narrow 1.9m wide chassis and 210° articulated rotation combine with true four-wheel stability.  Fast, safe operation, in a tight footprint. Plus 80V full AC technology guarantees low energy consumption and maintenance costs.What's more, by using the one truck, users can increase productivity and eliminate time-consuming double handling and speed up "truck to rack" operations.

With the RUMLIFT VNA forklift you can create up to 50% more warehouse capacity.

- With greater reach and capacity, it can lifts up to 12.5m, offers VNA operation in aisle-widths of just 2 m and has impressive load/lift capacity of up to 3.0t, increasing warehouse storage by 50% and lowering costs.
- The forklift with 210 degree articulated angle with flexible working in the ultra-narrow channel. The full AC system provides a more efficient performance, stronger power and free maintenance.
- easy operation

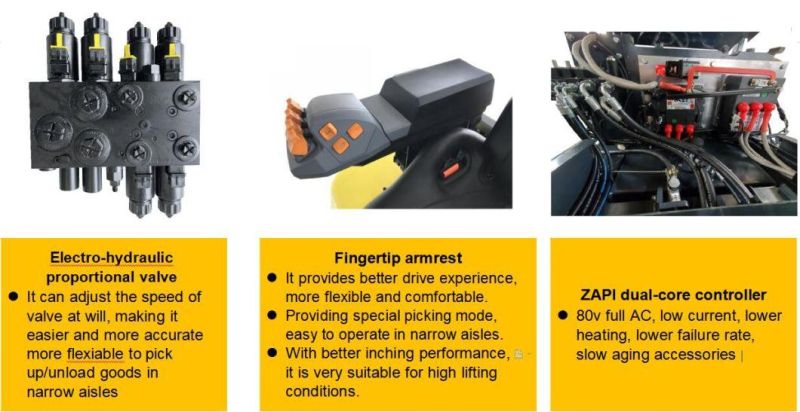

- The electro-hydraulic proportional valve, valve speed can be adjusted according to the will, making it easier and more accurate to pick up and offloading the goods.
- Optional finger tip control provides better control experience, more flexible and accurate operation. It provides special picking mode which is easy to operate. With better micro performance it is very suitable for high lifting handling working condition.


MODEL		MJ20
Technical Specification	Unit	Electric
Rated Capacity	kg	2000
Lift height	mm	6320
Overall length	mm	2780
Mast closed height	mm	3115
Free lift	mm	2215
Ground clearance	mm	50
Overhead guard height	mm	2270
Chassis width rear	mm	1400
Chassis width front	mm	980
Load center	mm	600
Wheel base	mm	1735
Seat height	mm	1220
Mast tilt(back/fwd)	.	3/1
Mast rotate angle (left/right)	.	220
Ground speed	Km/h	16
Lift speed(load/unload)	m/s	0.55/0.70
Front tyre size	mm	413*178
Rear tyre size	mm	457*229

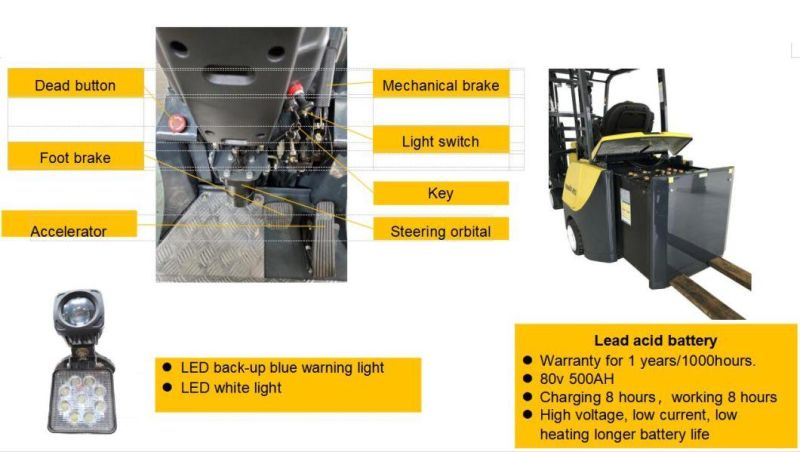

Lead-acid battery	V/AH	80/500
Grade ability(load/unload)	%	18/20
Traction motor	AC	19.5kw
Lifting motor	AC	15kw
Transfer aisle width	mm	2700

FAQ:

Q1: How long is the  Warranty for RUMLIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3:  How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?

A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .

Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.

Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.

Q6: What's the specification of the chargers?
A6:  Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q7: Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.
