CE Certificate Forklift Parts Forklift Fork
Hangzhou Vanguard Machinery Co., Ltd.- Material：33mncrtib,15b37
- Surface Treatment：Painting
- Customized：Customized
- Standard：Standard
- Cross Section：450X180mm Maximum
- Length：6000mm Maximum
Base Info
- Model NO.：THF
- Back Height：2500mm Maximum
- Class：Class a~5A, B~5b
- Type：Forklift Parts
- Load Capacity：<60t
- Power：Forklift Parts
- Transport Package：Export Standard
- Specification：CE, ISO
- Trademark：MIK or OEM
- Origin：Made in China
- HS Code：8431209000
Description
FORKS(mm)CARRIAGE(mm) Class A,B M K A B C D I 394/432 306 76/114 331 13 16 II 470/545 382 76/152 407 13 16 III 568/695 477 76/203 508 16 21.5 IV 743/870 598 127/254 635 19 25.5 V 830/960 680 127/257 728 25 34
Data SheetsMetric MarketModel Cross Section
(mm) Capacity*Load center
(kg/mm) 2A 80x40 1000*500 2A 100x30 750*500 2A 100x35 1000*500 2A 100x40 1250*500 2A 100x45 1500*500 2A 100x50 1650*500 2A 120x35 1000*500 2A 120x40 1500*500 3A 120x45 1500*500 3A 120x50 2450*500 3A 125x40 1500*500 3A 125x45 2000*500 3A 125x50 2500*500 3A 130x40 1500*500 3A 130x45 2000*500 3A 130x60 3000*500 3A 140x50 2700*500 4A 150x50 2500*600 4A 150x60 3500*600 4A 150x65 4000*600 4A 150x70 4500*600 4A 150x75 5000*600 Thickness x Width (inch) Metric Size(mm) Capacity*Load center(kg*mm) 1 1/2 x 3 80x40 850*600 1 3/8 x 4 100x35 850*600 1 1/2 x 4 100x40 1150*600 1 3/4 x 4 100x45 1400*600 2 x 4 100x50 1750*600 1 1/2 x 5 125x40 1400*600 1 3/4 x 5 125x45 1750*600 2 x 5 125x50 2150*600 2 x 6 150x50 2600*600 2 1/4 x 6 150x60 3750*600 2 1/2 x 6 150x65 4400*600 2 3/4 x 6 150x70 5100*600 3 x 6 150x75 5850*600 2 3/4 x 8 200x70 4530*900 3 1/2 x 8 200x90 7500*900 4 x 10 250x100 8675*1200 4 x 12 300x100 10425*1200 5 x 12 300x125 13575*1200 6 x 12 300x150 23425*1200
1.Only popular cross section are listed above.We can produce up to 450mm X180mm.
2.The max. length we make is 6000mm and max. back height is 2500mm.
3.Steel Certificated as:
Material: 40Cr--C%: 0.37-0.44; Si%: 0.17-0.37; Mn%: 0.5-0.80; Cr%: 0.80-1.1
Mechanical Specifications:
Tensile Strength: 935MPA/MM Reduction of Area R/A: 51%
Yield Strength: 805MPA/MM Impact Energy: 27J (-20oC-V)
Surface Hardness: 255-385HB Elongation: 12%
4.All forks comply with a minimum safety factor of 3:1.
5. We use "robot" welding to supply first class products.

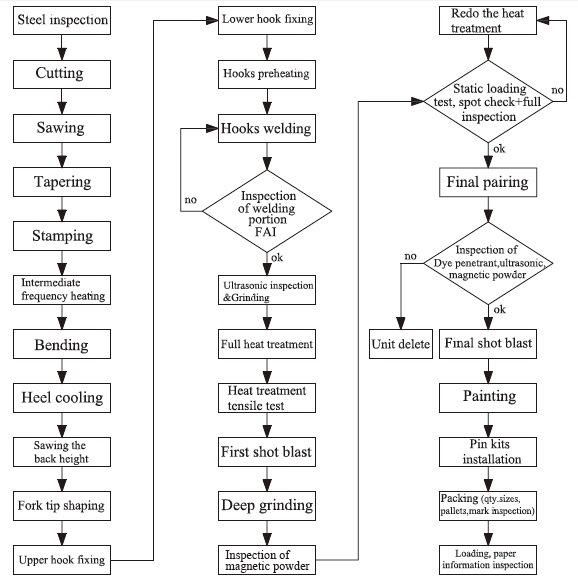

2. MIK FORK ARMS FLOW CHART
Unique Advantages:
1. Robotic Welding
- to ensure more stable and safer welding quality.
2. Heel-Guard® Design
- to double the forks' life!
3. Preheating Control
- infrared thermometer warning.

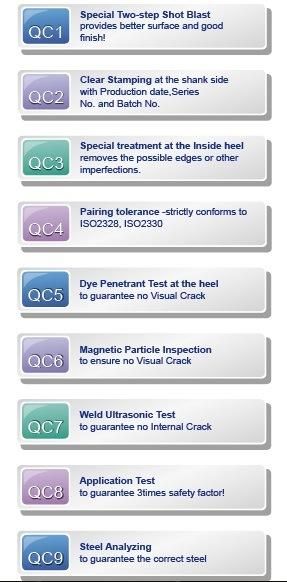

Super Quality Control:
