• Model NO.：HH50
• Condition：New
• Configuration：According to Your Request
• Rated Capacity：5000kg
• Power Type：Diesel
• Tire Type：Pneumatic
• Gearbox Change Speed Type：Hydraulic
• Free Lift Height：205mm
• Fork Outside Spread Min/Max：300,1700mm
• Turning Radius：3300mm
• Max. Gradeability：20
• Self Weight：8000kg
• Transport Package：Container, RO - RO Ship, Frame Cabinet, etc.
• Specification：CE, ISO
• Trademark：CHHGC
• Origin：China
• HS Code：84272
• Production Capacity：5000PCS,Year

GeneralManufacturer

       CHHGCModel

 HH50HH60HH70Rated capacitykgkg500060007000Load centermmmm600Gearbox change speed type

 HydraulicPower type

 DieselTire typeFront/Rear

 PneumaticWheelsFront/ Rear

 Dual front     wheels.4/2DimensionsLift heightmmmm3000Free lift heightmmmm205210215Fork sizeL*W*Tmmmm1220x     150x551200x     150x601200x     150x65Mast tilt angleFwd/Revsdegdeg6/12Fork outside spread Min/Maxmm
 300/1700Overall length (without fork)mmmm34723592Overall widthmmmm1995Mast height fork loweredmmmm2500Overall height fork raisedmmmm4429Overall height     (overhead guard)mmmm2420Turning radius (outside)mmmm33003450Load distance (centerline of     front axle to front face of forks)mmmm590595Wheel basemmmm2250TreadFrontmmmm1470Rearmmmm1700Min. Under-clearance (full load / no load )Bottom of mastmmmm160/200Bottom of framemmmm190/230PerformanceSpeedTravel speedWith loadkm/hkm/h26Without loadkm/hkm/h28Lifting speedWith loadmm/seckm/h370330320Without loadmm/seckm/h550500500Max. Drawbar pullKNKN>21Max. Gradeability%%>=20TreadFrontMM
 1470RearMM
 1700TransmissionType

 (hydraulic)ShiftFWD/BWD

 2-2WeightSelf weightkgkg800086409350TyreFrontSizeFront

 8.25-15-14PRRearRear

 8.25-15-14PR
 BrakeBrakeService
 Hydraulic-Foot     pedalParking
 Mechanical-Hand     lever  Transmission
 BatteryVoltage / CapacityV/     AH2-12V/80AHInternal combustion engineModel for option
 1. ZHAOCHAI ;     2. ISUZUTransmissionType
 Hydraulicshift ( Fwd/Rvs)
 2/2

Standard Configure


















Standard  Configure
 ForksWater-thermometerTraction PinLoad-backrestOverhead guardElectric hornReversing lightChronoscopeFuel gaugeCharging indicationTool boxFree spare partsOil pressure alarmTurn light indicateHigh visibility mastSeat with arm and safety beltheadlampCombination rear lampFormed pedal padMultiple unit valveTransmission oil filterBack-up BuzzerTransmission oil scaleHydraulic circuit oil filterNeutral safety switchOverhead guard appenticeAir intake installationDurable tyreCable type parking brakeHydraulic oil scalePreheat indicatorHydraulic power transmissionLifting jack governor valveLifting and tilting joy stickWhirlwind joy air stickAutomatic engine preheating system
Alternative equipment

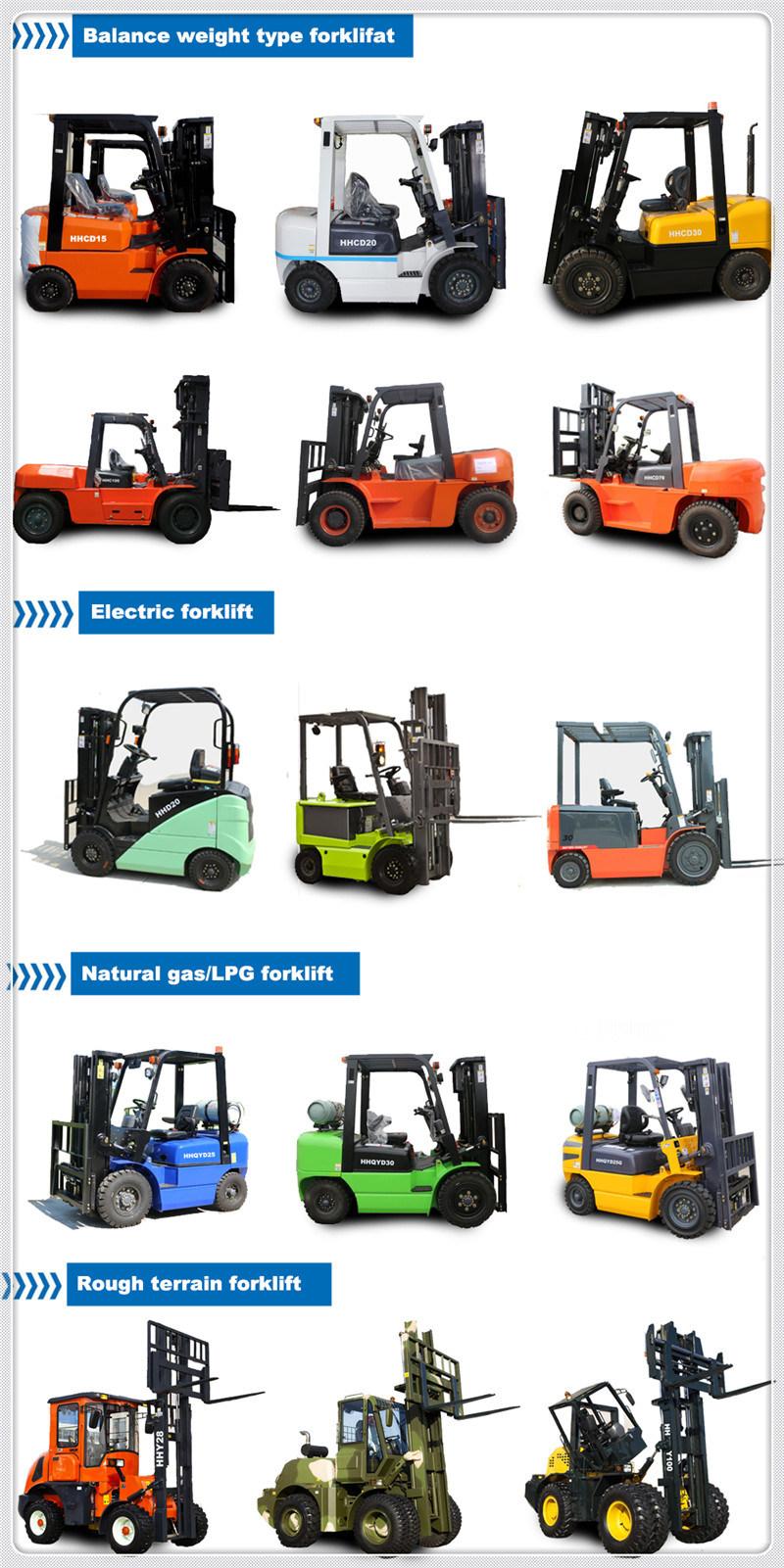

Products series

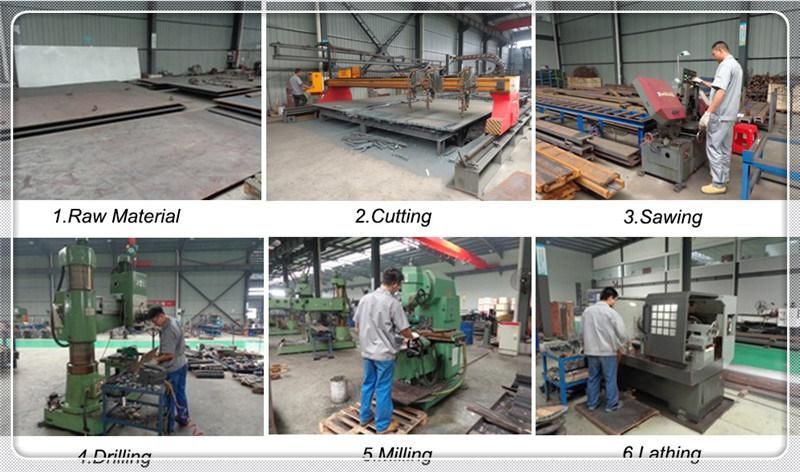

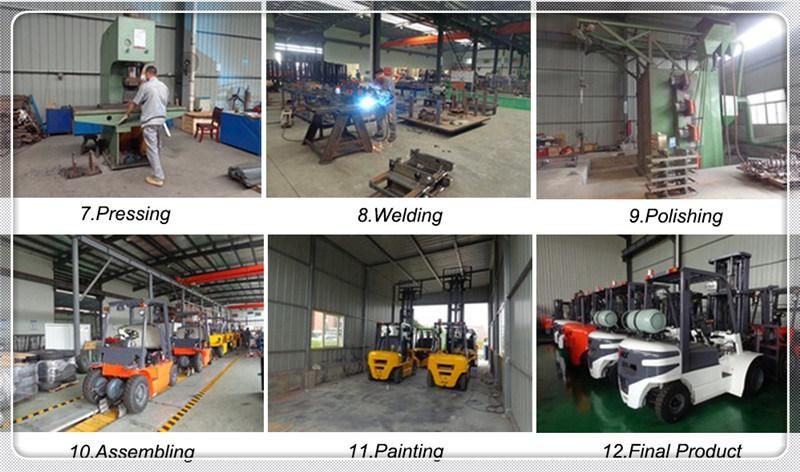

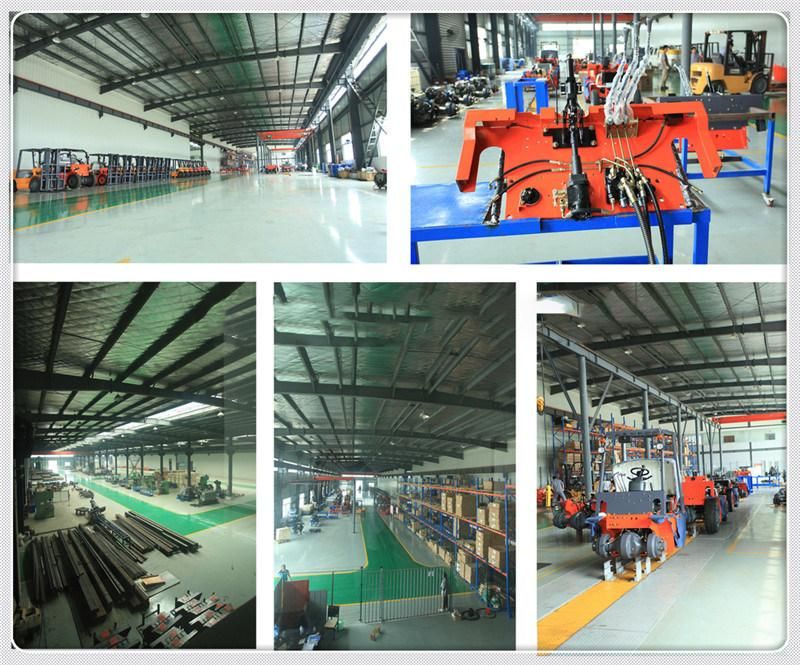

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the forklift?
A:    By container, bulk ship, RORO.

Q2. Do you have different forklift?
A:   Yes,we supply different model forklift and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type forklift do you supply?
A:  We supply all kinds of forklift such as gas, petrol, diesel, electric forklift etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
A reliable mast
Emphasis on the inherent quality of the mast has provided operator a reliable security.Wide view mast makes vision more clearly.
We adopted the German mast channel which has the world-class quality.
The cross-section of mast channel has been increased and the structure become more strong.

New type of adjusting mechanism of the steering
The new type steering wheel dual threaded adjustment mechanism with patented technology has improved the operator comfort and adjustment reliability.

New drive and control system
Adopt the international electric actuators and makes the truck steering more stable,and output power stronger.
New electronic blanker improves the comfort and safety of the operation.

Air Inlet System
Air inlet mounted on top of overhead guard pillar, far away from the dust generated from the wheels driving ,and the engine inlet cleaner air improved engine life.

Reliable casting steering axle
Compact structure and the deflection is small under load.
Equipped with damping buffer device enhance driving comfort.
Dustproof and waterproof structure improve its life and reliable.
Later period maintenance cost is low.
